VPN on Windows PC: Pulse Secure VPN installation for Windows PC users


Video Tutorial for Installing Updated Pulse Secure VPN Client

Links from video:


Instructions for Updating Pulse Secure VPN on a Windows PC

Connecting to DePaul's Virtual Private Network (VPN) through the Pulse Secure client requires the use of the Microsoft Authenticator app and BlueKey multi-factor authentication (MFA).  You will need to download the Microsoft Authenticator app and setup BlueKey MFA at bluekey.depaul.edu/multifactorsetup (if you haven't already done so) prior to accessing the VPN. Learn more about registering for BlueKey MFA.


I have connected to the VPN through Pulse Secure for a while, but now it's not working.

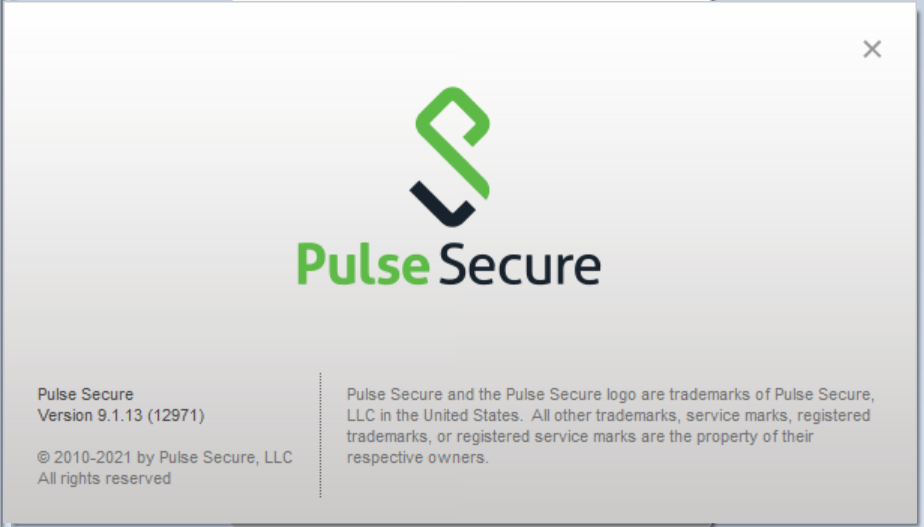

Many current VPN users have an older version of Pulse Secure VPN and will need to uninstall and re-install this software. Check your current version of Pulse Secure in the menu under "About". If your version of Pulse is 9.1.12 or higher, you will not need to update this file, but you will still need to change your configuration. Go down to the "New Configuration Settings" on this page and follow the instructions.

If your version is lower than 9.1.12, you will need to uninstall Pulse Secure VPN from your computer and then follow the instructions to Install the new version and configuration below.


IMPORTANT! Before removing the older version of Pulse Secure from your computer (if you were connecting to the VPN before), make sure to check your connection on Pulse Secure to see if it's either listed as "Remote" or "Data Center". There are two different types of connections, and it's important to know which one you need.

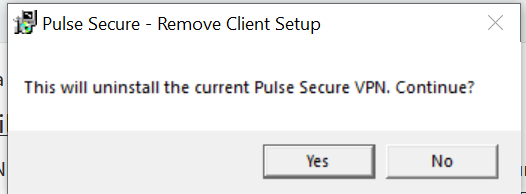

If you have a version of Pulse Secure lower than version 9.1.12, use this file to remove your existing VPN client (This file is located in OneDrive. You may need to login to access it.). Once you open this file, you must answer two important questions:

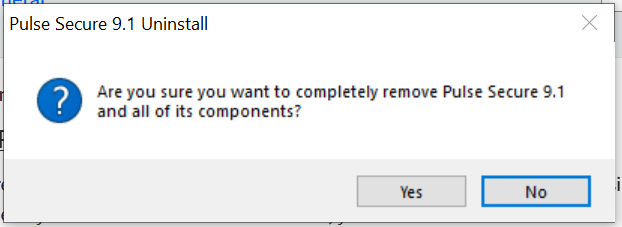

  1. You will be asked if you want to completely remove Pulse Secure and all of its components? – answer YES

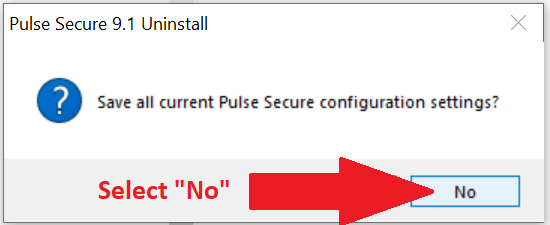

  2. You will be asked if you want to save current Pulse Secure configuration settings? – answer NO (very important)


Downloading the updated Pulse Secure VPN file

Download the updated Pulse Secure VPN file for your Windows PC (This file is located in OneDrive. You may need to login to access it.).


Installing the Pulse Secure VPN file

After installing Pulse on your Windows PC, it is important to identify the type of user that you are: Data Center user or Remote Access user. After downloading and installing the Pulse Secure VPN, it is now time to configure your connection.

Examples of services used by Remote Access users:
  1. If you are working off campus and need to access certain services (examples below) that are only available on campus
  2. Access to the U and W drives
  3. DePaul licensed software that can only be used by connecting to the VPN (such as SPSS Statistics)
  4. Access to Imagenow from off campus (with no other data center access)
  5. Non-production Peoplesoft environments

Examples of services used by Data Center users:
  1. Direct database access, either Oracle or Microsoft SQL. Examples include access to CS, data warehouse, IRMA and other databases.
  2. Shell (sftp or ssh) access to DePaul servers. Examples include access to psftprd and webprd servers.
  3. Remote desktop access to DePaul servers.
  4. Web and desktop applications with limited access. Examples include access to the Transact system, Titanium Scheduler, and the camera viewing servers.

Open the search bar and search for Pulse Secure.

Open the app.

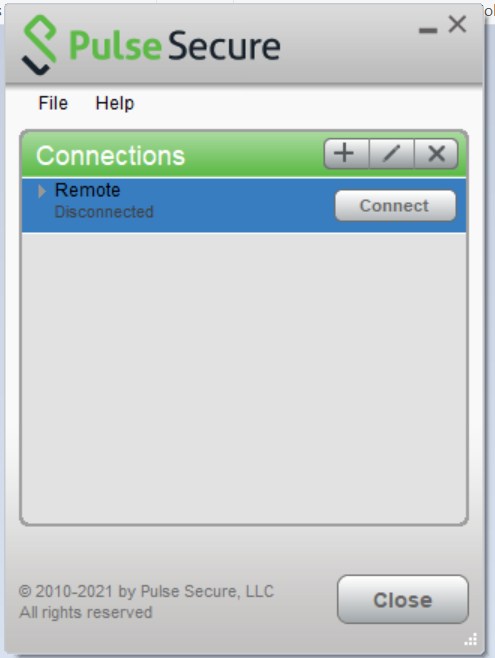

New Configuration Settings

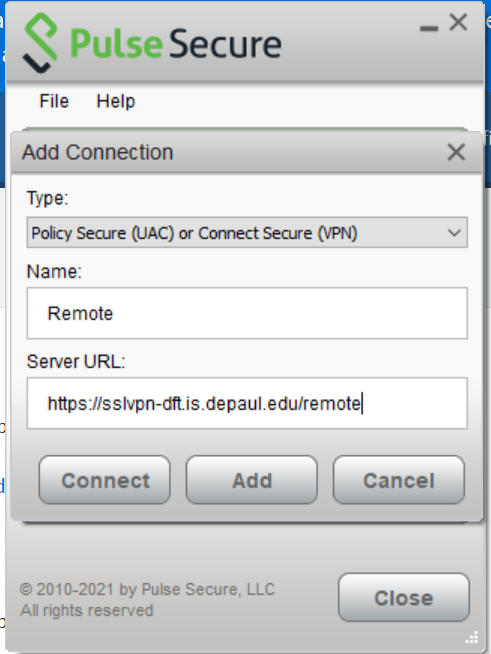

For Remote Access users:

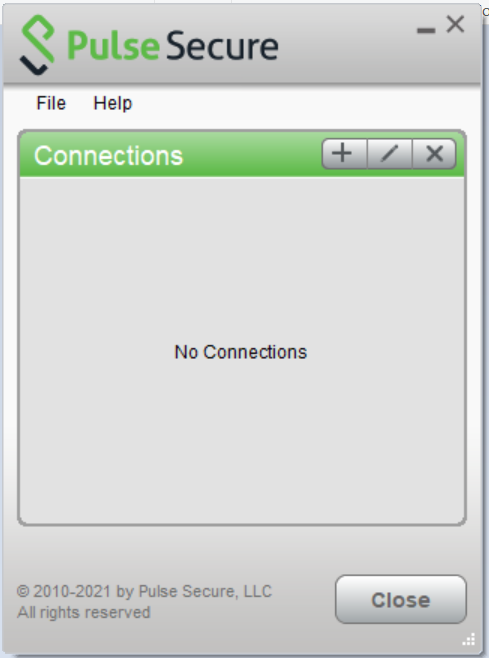

  1. Open the Pulse Client.
  2. Click on the + next to Connections
  3. The Type is: Policy Secure (UAC) or Connect Secure (VPN) by default, leave it at this.
  4. Under Name: enter Remote
  5. Under Server URL: enter https://sslvpn-dft.is.depaul.edu/remote
For Data Center users:
  1. Open the Pulse Client.
  2. Click on the + next to Connections
  3. The Type is: Policy Secure (UAC) or Connect Secure (VPN) by default, leave it at this.
  4. Under Name: enter Data Center
  5. Under Server URL: enter https://sslvpn-dft.is.depaul.edu/datacenter
